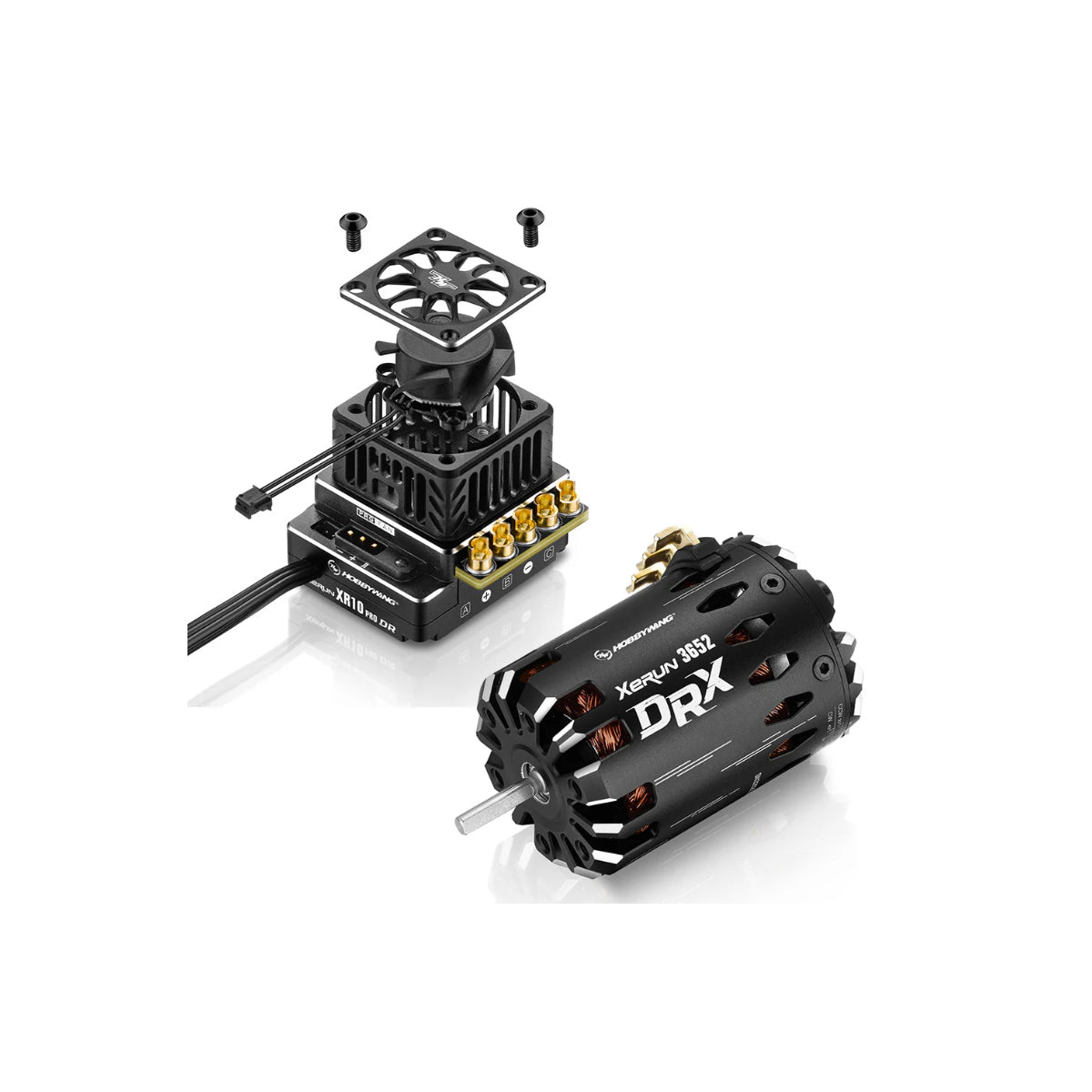

XeRun XR10 ESC + DRX3652 9500KV Motor Combo
Couldn't load pickup availability
Features:
- Powerful Performance: High-performance hardware and software tailored specifically for Drag Racing.
- Ready to Race: Comes with factory standard 10AWG silicone wires and a super large capacitor module-everything you need is included.
- Customizable RPM Control: Fine-tune RPM limits by throttle with adjustable boost start and end RPM for optimal performance.
- Comprehensive Protection: Features low-voltage cutoff, ESC and motor thermal protection, and fail-safe mechanisms for enhanced safety.
- Data-Driven Insights: Utilize the OTA Bluetooth module to record and analyze running data via the HW LINK App on your mobile device.
- Easy Firmware Upgrades: Upgrade firmware effortlessly using the Hobbywing LCD Pro program box or OTA Programmer (sold separately).
Motor Features:
- Gearing guideline: Reasonable selection of gear ratio is very important. Improper gear ratio may cause damage. You can select the gear ratio according to the following points!
- The operating temperature of the motor: The motor temperature should be lower than 100 degrees Celsius (212 degrees Fahrenheit) in operation. High temperature may cause the magnets to get demagnetized, the coil to melt and short circuit, and the ESC to get damaged. A proper gearing ratio can effectively prevent the motor from overheating.
- The principle of selecting gear ratio: To avoid the possible damage to ESC and motor caused by the overheating, please start with a small pinion/a big FDR and check the motor temperature regularly. If the motor and ESC temperature stays at a low level during the operation, you can change a larger pinion/a lower FDR and also check the motor temperature regularly to ensure that the new FDR is suitable for your vehicle, local weather and track condition. (Note: For the safety of electric devices, please check the ESC and motor temperature regularly.)
ESC Specifications:
- Cont. / Peak Current: 200A / 1200A
- Motor Type: Sensored Brushless Motors
- Applications: 1/10 Drag Racing
- Recommended Motor: 3652 / 3662 (540 / 550) size motors KV<9800
- LiPo Cells: 2S LiPo
- BEC Output: 5-7.4V Adjustable, Continuous Current of 5A
- Cooling Fan: Powered by the stable BEC voltage
- Size: 37.7 (L) x 37.2 (W) x 33.2 (H) mm (w/Fan & Fan Shroud)
- Weight: 137g (w/Wires)
- Programming Port: Independent programming interface
Motor Specifications:
- KV: 9500KV
- LiPo: 2S
- No-Load Current: 8.6A
- Motor Diameter / Length: D=36mm (1.42in); L=53mm (2.09in)
- Shaft Diameter / Length: D=3.175mm (0.13in); L=14.5mm (0.57in)
- Bearing Size: Front: D9xD4xT4; Rear: D8xD3xT4
- Poles: 4
- Weight: 187g
- Applicable: 1/10 Drag Racing
