Tamiya - RC XV-02RS PRO CHASSIS KIT
Couldn't load pickup availability
Required to Complete:
- 2-Channel radio
- Steering servo
- ESC
- 7.2-7.4 Volt battery with compatible charger
- 540 Motor
- 190mm Body set
Features:
- 1/10 scale R/C chassis assembly kit.
- Features aluminum-cylinder oil dampers employing shaft length suited for on-road performance and dedicated 3.5mm thick carbon fiber damper stays, and carbon fiber-reinforced rigid lower chassis.

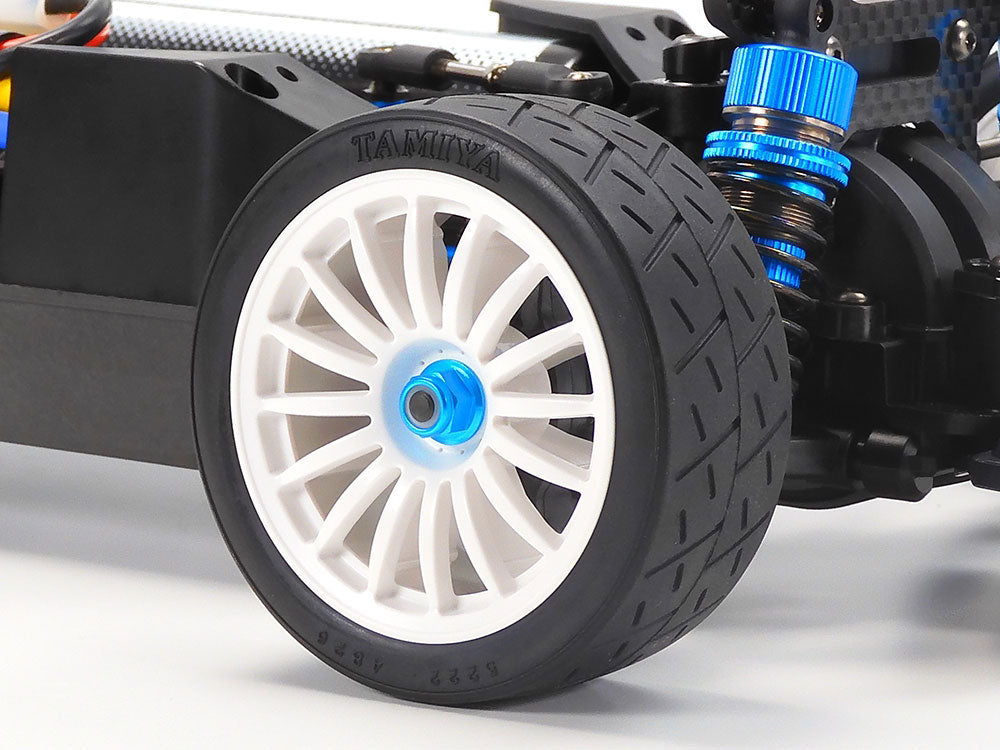

- 18-spoke wheels are paired with racing semi-slick tires.
- Equipped with front midship motor plus identical length front and rear long propeller shafts.
- Comes with two 39T differential gears and one 40T differential gear for adjustment of front and rear drive balance.
- Use 39T gears (w/15T gears) on the front and rear for standard drive balance, 39T gear (w/15T gear) on the front and 40T gear (w/15T gear) on the rear for drive balance bias to front and vice-versa for drive balance bias to rear. Use the latter two with slipper clutch and center differential.
- A longitudinal battery pack is positioned in the center-left for optimum balance.
- The flat chassis bottom and skid angle on the front bumper further contribute to limit surface contact under driving conditions.
- Caster blocks feature an angle of six degrees.
- Includes front and rear universal drive shafts, and an aluminum servo mount.
