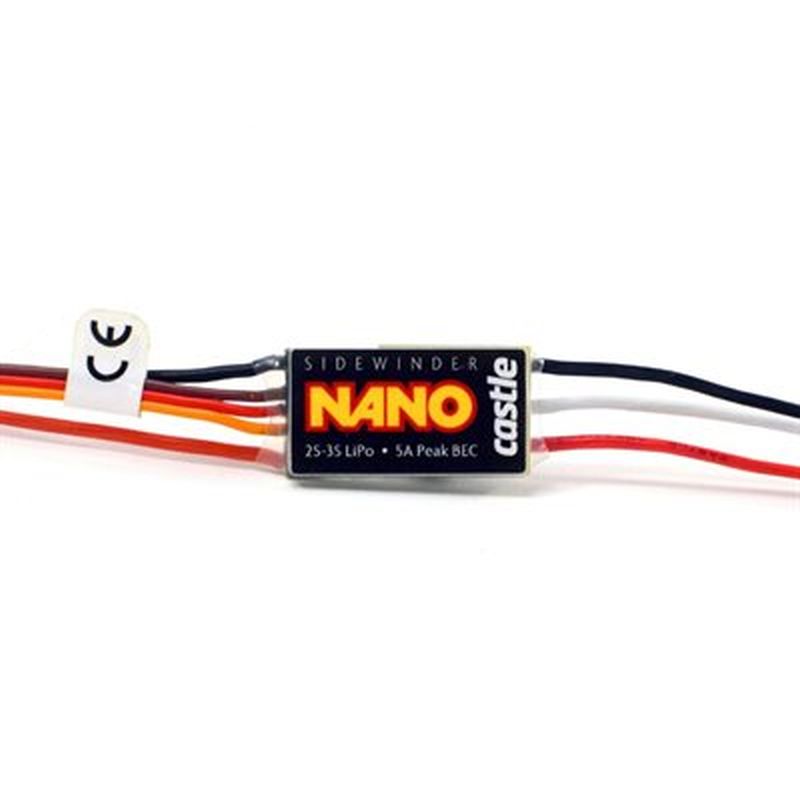

Sidewinder Nano Micro ESC, 12.6V
Couldn't load pickup availability
PRODUCT APPLICATIONS:
Ideal for 1/24th scale 2WD or 4WD vehicles up to 1lbs
Vehicle examples: Axial SCX24, Axial AX24, Element Enduro24, FMS FCX24
1/18th crawlers up 2.25lbs (no rock racing/hill climbing)
Vehicle Examples: Axial UTB18, Traxxas TRX-4m, FMS FCX18
Includes:
- Sidewinder Nano ESC
- ESC Quick Start Guide
Required to Complete:
- Battery and Motor Connectors sold seperately
Features:
- Input Voltage Range 2s-3s LiPo, 12.6V Max
- Sensorless and Brushed Running Modes
- Internal BEC 5V Fixed, 5A Peak
- CRYO-DRIVE Technology minimizes the amount of time the ESC's electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
- Castle Link tuning via Windows PC and a Castle Link USB adapter (sold separately)
- Convenient TRANSMITTER PROGRAMMING for six common adjustable settings including cutoff voltage and drag brake
- Optional smartphone-based programming with the B-LINK Bluetooth Adapter (sold separately) and Castle Link app available on Google Play or Apple App Store
- Audible alerts for easy diagnoses of common issues such as low-voltage cutoff
- Proudly designed and supported in Kansas, USA.
- Backed by Castle Creations' 1-YEAR WARRANTY
Specifications:
- Input Voltage Range: MIN: 2s LiPo MAX: 3s LiPo 12.6V
- BEC Specifications: 5V fixed output, 5A Peak
- Operating Environment: Not waterproof, silicone conformal coated for water resistance.
- Size: Length: 1.1" (28mm) Width: .61" (15.5mm) Height: .37" (9.3mm)
- Weight (with no battery connector): 0.35oz. (10 Grams)
- Product Use Statements: Any appropriately sized outrunner can be utilized. A 1806 (stator size) is popular for the 24th scale crawlers, monster trucks, etc. 3000-3500ish KV for 2S, 2000-2500kv for 3S. (motor outside dimensions are ~16mm diameter, ~20mm length). A 2204 to 2208 (stator size) is a good choice for 1/18th scale crawlers (IE Axial UTB18, Traxxas TRX4m). Same KVs as before. (motor outside dimensions ~28mm diameter, ~26mm length)
- Applications Guidelines: For 1/24th scale 2WD or 4WD (Axial SCX24, Axial AX24, Element Eduro24, FMS FCX24) vehicles up to 1lbs. 1/18th crawlers up to 2.25lbs (Axial UTB18, Traxxas TRX4m, FMS FCX18) (No rock racing/hill climbing)
