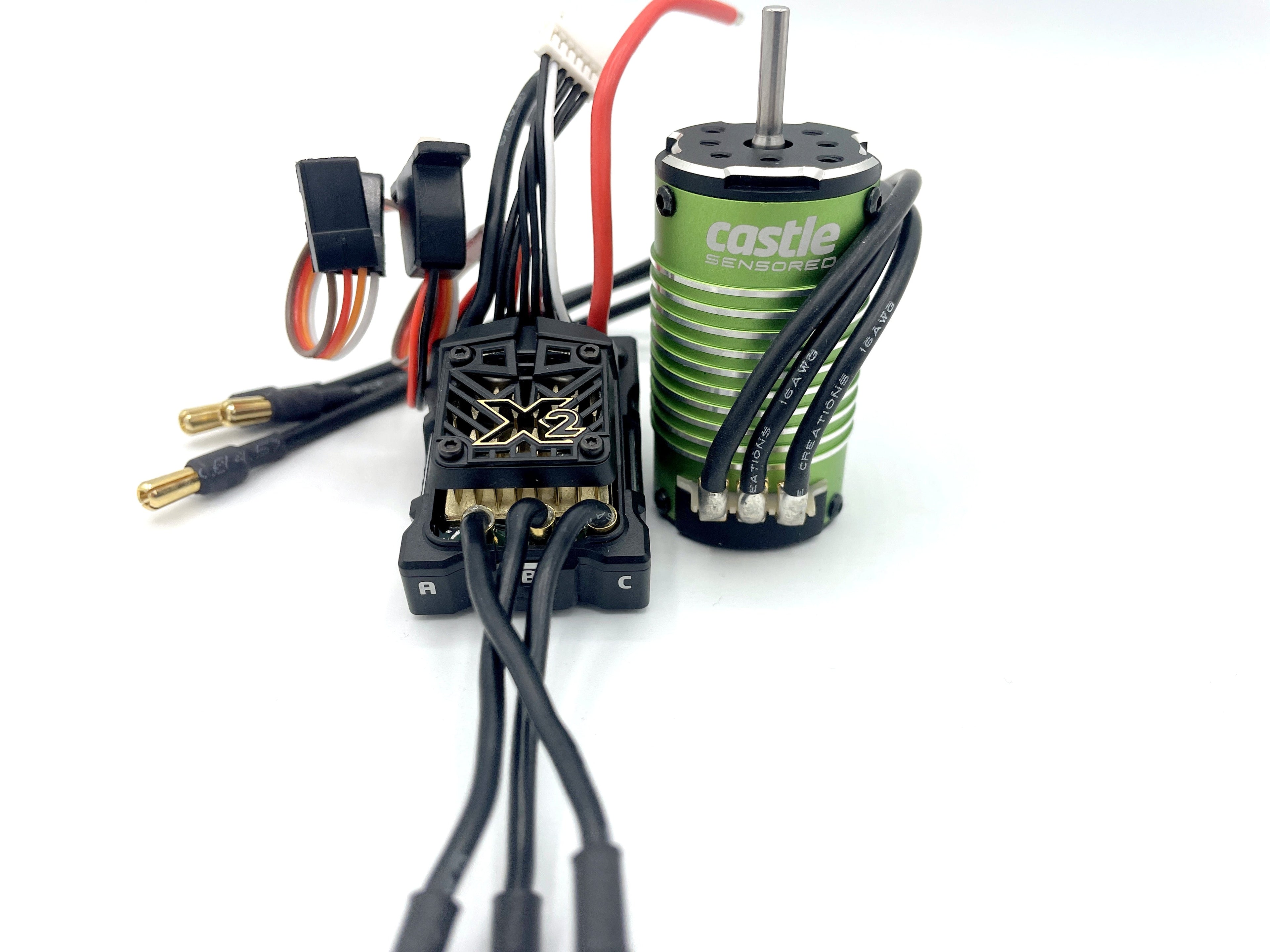

Mamba Micro X2, 16.8V WP ESC w/ 1007-6350KV Sensored Motor
Couldn't load pickup availability
This ESC and Motor Combo is ideal for 1/14th and 1/16th scale vehicles, weighing up to 2.75lbs and up to 3s LiPo. The sensored 1007-6350kv motor allows for smooth startup with heaps of torque and low temperatures.
Items Needed for Operation: Battery Connector required: Castle 4.0mm Polarized Connectors, Deans Ultra Plugs and XT60 are recommended.
Includes:
- Mamba Micro X2 ESC with 4mm Connectors
- External 10-amp CC BEC
- 1007-6350Kv Sensored Motor
- Sensor Harness
- Coupon for free Castle Link USB adapter or discounted B-Link Bluetooth adapter
- Quick Start Guide
- Castle Decals
Features:
- Input Voltage range 2S-3S with included motor.
- Waterproof design, included CC BEC is not waterproof.
- Sensored Motor capable
- Convenient transmitter programming for six common adjustable settings.
- Additional settings and software updates available via Windows(R)-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App and a B-LINK Bluetooth Adapter (discount coupon included)
- Telemetry Ready (Compatible with S.BUS2 Telemetry Link and Futaba T4PX, T7PX and T7PXR transmitters)
- Auxiliary Wire Functionality allows for "on-the-fly" adjustments such as Max Power and Max Brake.
- Audible Alerts that will notify you of possible issues with calibrations and error conditions.
- Designed and manufactured in Olathe, Kansas and is backed by Castle Creations' 1-year warranty.
ESC Specifications:
- Input Voltage Range: 2S-4S LiPo (16.8V Max)
- BEC Specifications: No internal BEC in ESC. External 10-amp CC BEC Included.
- Operating Environment: Waterproof* design allows for use in nearly any environment; included CC BEC is not waterproof.
- Brake: Proportional
- Reversible: Yes, but may be disabled
- On/Off Switch: Yes, waterproof
- Cooling Fan: Coming soon, uses 25mm size fan
- Size (L x W x H): 41.6 mm x 29.4 mm x 21.3 mm (1.64" x 1.16" x .84")
- Weight (with wires): 1.66 oz / 47 grams
- Connectors: 4.0 mm bullets
Motor Specifications:
- Input Voltage Range: 2s - 3s LiPo
- kV: 6350
- Max. RPM: 80,000
- Size: Length: 50.3 mm, Diameter: 28 mm
- Weight (w/wires): 4.05oz (114.8g)
- Shaft Size: Length: 15 mm, Diameter: 1/8" (3.175 mm)
- Mounting Hole Specifications: M.5 @ 14mm & 16mm; M3 @ 19 mm
- Connectors: 4mm male Castle Bullet Connectors attached to replaceable 16 gauge wire; includes 210mm length sensored wire
- Application Guidelines: Ideal for 1/16th and 1/14th scale vehicles weighing up to 2.75lbs.
