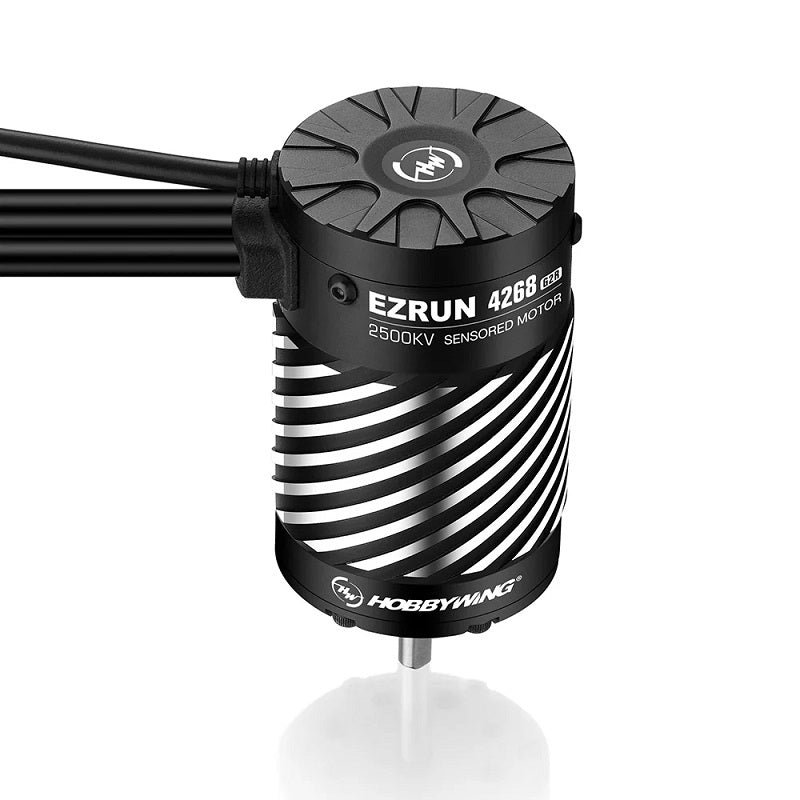

EzRun 4268SD G2R 2500KV (3-4S) Motor
Couldn't load pickup availability
Includes:
- (1) Ezrun MAX 4268 SD Motor (2500KV)
- (1) Manual
Features:
- EzRun MAX 4200 Series G2R Motors have excellent compatibility with the Hobbywing EZRUN MAX8 G2S ESC. The ESC can automatically recognize this motor, creating a fully sensored power system that offers improved control performance and a refined control feel, while also enabling motor overheat protection.
- The rotor features four high-strength, high-temperature-resistant sintered Nd-Fe-B magnets with widened magnetic tiles, delivering exceptional torque, explosive power, and stable output.
- An independent magnetic ring ensures that the Hall sensor consistently outputs a pure rotor position signal, effectively avoiding sensor signal interference and enabling stable operation in sensor mode.
- With high output efficiency, this motor reduces temperature and delivers more power under the same load.

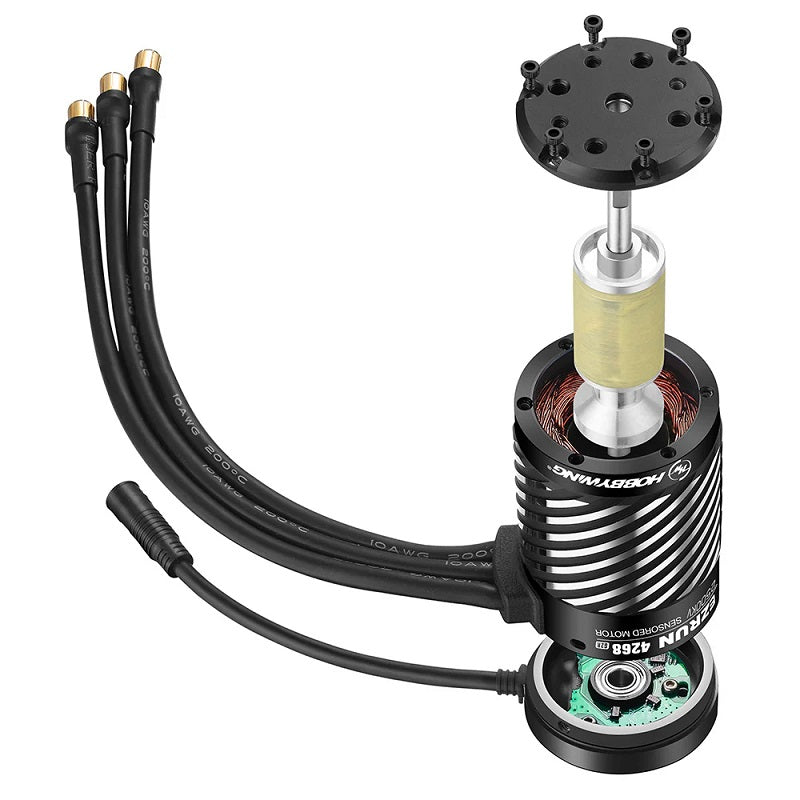

- Its CNC-machined aluminum housing, high-purity copper windings, advanced rotor structure, 0.2mm silicon steel laminations, high-quality stainless steel output shaft, and high-precision bearings enhance durability and smoothness.
- The innovative new sensor interface and rubber-covered bearings provide superior waterproofing and dustproofing compared to traditional sensored motors.
Specifications:
- KV: 2500KV
- LiPos: 3-4S
- No-Load Current (A): 5.0A
- Diameter / Length (mm): D=42 mm (1.654 in) / L=68 mm (2.677 in)
- Shaft Diameter / Length (mm): D=5 mm (0.197 in) / L=18.5 mm (0.728 in)
- Bearing Size (mm): Front: D16xD5xT5 / Rear: D11xD5xT5
- Poles: 4
- Weight (g): 360g
- Applications: 1/8 Buggy, 1/10 Heavy-Dut Monster Truck
