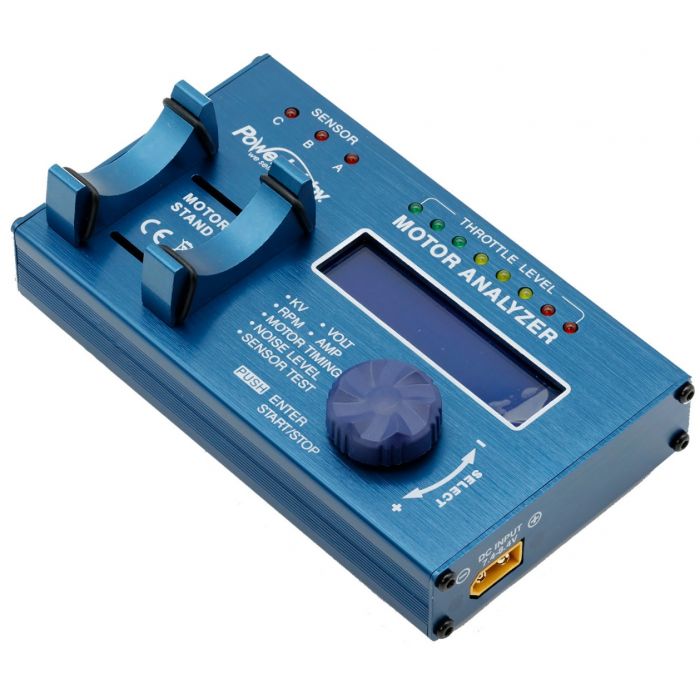

BMA-01 Brushless Motor Analyzer RPM KV Voltage
Couldn't load pickup availability
KV / VOLT / RPM / AMP:
KV (RPM per Volt) Shows the rotor RPM/Volt at a certain throttle power level.
U (VOLT) Shows the input voltage to the motor checker.
RPM (Revolution Per Minutes) Shows the rotor revolution at a certain throttle power level.
I (AMP) Shows the current drawn by the motor at a certain throttle power level.
MOTOR TIMING - Physical end bell timing, usually between 0 and 70 degrees, requires tools to rotate the sensor board.
NOISE LEVEL - Poor assembly, inferior bearings, or unbalanced rotors can generate a vibration. This vibration is adverse to the performance of the motor. By measuring this, you can select the "quietest" motor.
Phase A, B, and C Sensor Timing: Shows the actual timing of all three sensor elements
Specs:
Net Weight: 282 grams (Without Cables)
Input Voltage: 7.4-8.4V (Suggested to Use 7.4V 2S 1P Lipo Battery)
LCD Display Screen: Blue Backlight Background, White Text, 16 Characters x2 Lines
KV Value Accuracy: +/- 3%
Motor Timing Accuracy: +/- 4%
Motor Timing Range: 0-70 deg
Noise Level Measurement Range: 60dB - 120dB
Supported Motor: Sensored or Sensorless Brushless Motors (2 to 36 Poles)
Size
Length: 80.6mm
Width: 136.5mm
Height: 24.5mm
Includes:
(1) Brushless Motor Analyzer
(3) Motor Cables
(1) Motor Sensor Cable
(1) DC Input Power Cable w/Banana Connector
(1) DC Input Power Cable w/Tamiya Connector
(1) Instruction Manual
