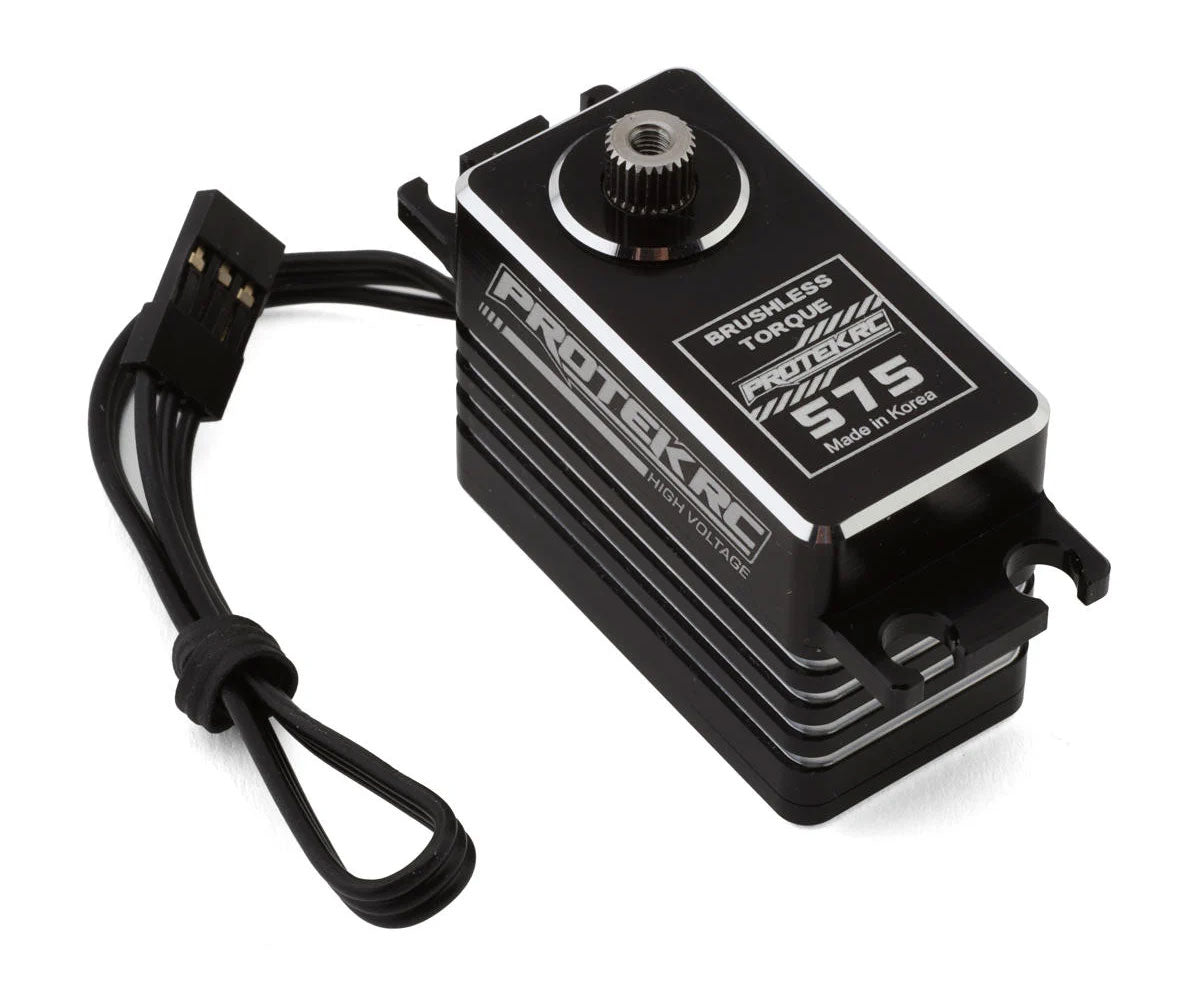

575 Low Profile High Torque Brushless Servo
Couldn't load pickup availability
Size
This High-Performance Racing Servo is specifically designed for 1/10 touring cars and 1/10 off-road buggies, with its low profile design allowing it to fit seamlessly into most chassis spaces. Its compact size ensures optimal weight distribution, enhancing the performance of high-precision vehicles across both on-road and off-road environments. Perfect for demanding racing conditions, it provides the control and responsiveness needed for competitive applications.
Power & Gears
The ProTek RC PTK-575 LP servo is equipped with a high-performance brushless motor and durable steel gears, ensuring maximum efficiency and longevity. The brushless motor provides smoother operation and higher torque, with less heat generation and longer lifespan compared to traditional motors. Additionally, the steel gears offer exceptional durability, resisting wear and maintaining precise performance even under the high-stress demands of competitive racing environments.
Application & Design
The ProTek LP servo is an ideal choice for 1/10 touring car chassis and off-road buggies, delivering optimal weight distribution for superior chassis tuning. Its low profile, combined with a sleek and compact design, ensures seamless integration increasing chassis space, helping to maintain balance and performance. This precision-engineered servo enhances control and responsiveness, making it a perfect fit for high-performance applications where agility and stability are key.
Includes:
- (1) 575 Low Profile High Speed Brushless Servo
- (1) Aluminum clamping servo horn
- Servo Hardware and grommets
Features:
- Ideal for a 1/10 Off-Road and On-Road Racing Platforms
- Brushless motor
- High voltage circuitry
- Full steel gears
- Full aluminum black anodized heat sink case
- Single offset servo spline
Specifications:
- Application: 1:10 Scale
- Operating Voltage: 6.0V - 8.4V
- Operating Temperature: 14degrees to 140degrees F (-10 to +60degrees C)
- Operating Speed @ 7.4V: 0.06/60degrees sec
- Operating Speed @ 8.4V: 0.055/60degrees sec
- Dynamic Torque @ 7.4V: 511oz-in (36.7 kg-cm)
- Dynamic Torque @ 8.4.0V: 575oz-in (41.4 kg-cm)
- Motor Type: Brushless Digital
- Output Shaft: 25T
- Gears: Steel
- Weight: 63g
- Pulse/Frequency: 1520s / 333hz
- Dimensions: 39.5x20x30.4mm
- Length (Bottom to Mount): 19mm
