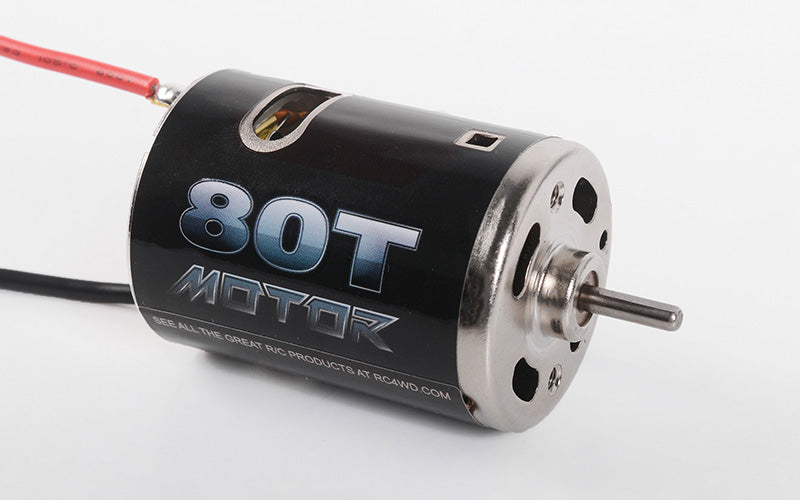

540 Crawler Brushed Motor 80T
Couldn't load pickup availability
Specifications:
Custom made 540 Steel case
Chrome plated case
Build in capacitor for minimizing glith
High torque magnet and rotor
Small footprint (50mm long)
Tuned for rock climbing and Scale driving
Polished Bushings
Body OD: 1.39in / 35.5mm
Output Shaft Length: 0.43in / 11mm
Output Shaft: 0.12in / 3.1mm
Min and Max Voltage Range: 2.4V-30V
Performance Specs:
(At no load) RPM @ 7.2V : 5500 (+/-10%), .45Amp Current
(Max Efficiency) RPM @ 7.2V : 4450 (+/-10%), 1.38Amp Current
Designed Oprating temperature Range: -30C to +80C
Motor End play : .50mm max
Noise level: < 60db
