1/10 RC TT-02BR Chassis Kit
  • 1/10 RC TT-02BR Chassis Kit
  • 1/10 RC TT-02BR Chassis Kit
1/10 RC TT-02BR Chassis Kit

1/10 RC TT-02BR Chassis Kit

Vendor: Echo Six Hobbies
Availability: In stock
$364.00
✓ Fast Shipping
✓ Secure Checkout
✓ Carefully Packaged
✓ Collector Focused
1/10 RC TT-02BR Chassis Kit
1/10 RC TT-02BR Chassis Kit
$364.00

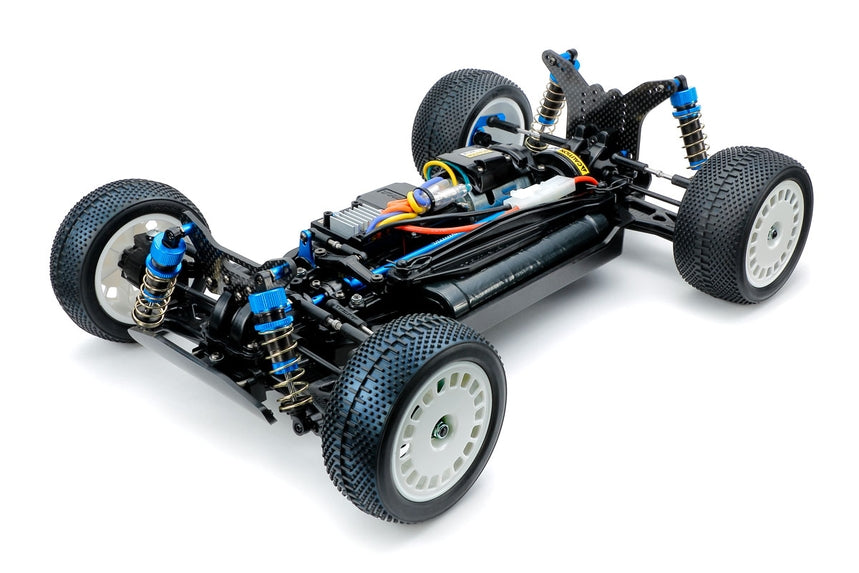

The Tamiya TT-02 and later TT-02B variant (B-standing for buggy off-road kits) chassis are among the most beginner friendly R/C products in our line-up. The TT-02BR chassis is an upgraded version of the TT-02B chassis kit with a wealth of upgraded parts, plus aluminum propeller joints and carbon fiber damper stays to ensure a wide range of setup adjustments.

Includes the Following Hop-up Option Parts:
Aluminum propeller joints
Carbon fiber damper stays
Item 22049: XV-02/TT-02 Oil Gear Differential Unit
Item 54501: TT-02 Aluminum Propeller Shaft
Item 54768: 06 Module Hard Coated Aluminum Pinion Gear (17T)
Item 54993: TT-02B/DF-03 Aluminum Damper Set
Item 53793: DF-02 Two-Way Aluminum Rear Uprights
Item 54539: TT-02B Full Turnbuckle Set
Item 53791: DF-02 Assembly Universal Shaft
Item 53880: Large Dish Wheels (4WD/Front, 62/25)
Item 53881: Large Dish Wheels (Rear, 62/35)
Item 54211: TRF201 Rear Wing Set
Item 54815: TT-02B Reinforced Gear Covers & Lower Suspension Arms (2pcs.)
Item 54926: TT-02 Lower Deck Hard/Black)

Required to Complete: 2-channel radio, steering servo, ESC, 540 motor, off-road tires, 7.2-7.4volt battery with compatible charger, and Tamiya PS paint. This item is sold as a kit, assembly required.

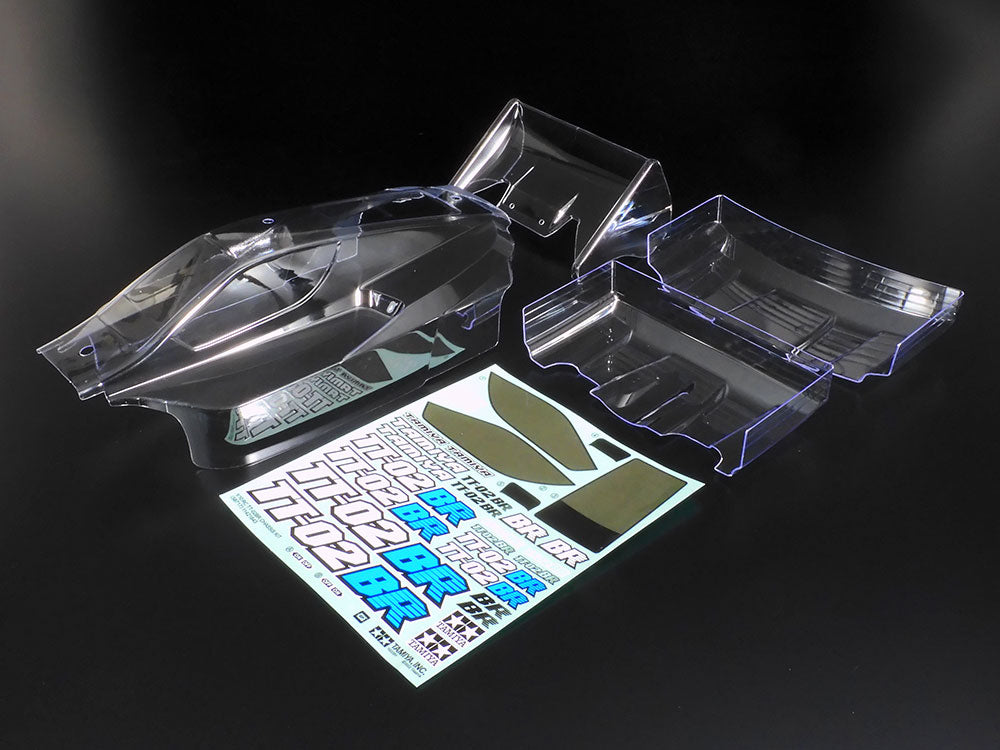

Includes: Neo Scorcher body (transparent). TT-02BR Chassis Kit.

Features:

  • Drivetrain uses Item 22049-oil filled gear to adjust the effectiveness of gear differential by using different oil viscosities.
  • Diff. joint cups designed for this chassis kit for improved durability.
  • New front and rear damper-stays give more set up options of oil dampers and upper arms.
  • Using front and rear universal drive shafts ensures stable drivetrain regardless of suspension stroke.
  • Propeller shafts have plastic parts at joint sections of aluminum joint cups and shafts to limit wear of joint cups.
  • Includes two rear wings - Neo Scorcher kit-standard one (transparent) and Item 54211 (TRF201 Rear Wing Set). Change wing stay when using Item 54211 TRF201 Rear Wing Set.
  • Item 54211 includes two wide design wings to adjust downforce depending on running surface condition, and wing stay spacers also included to adjust rear wing angle.
  • 4~6mm longer turnbuckle shafts help prevent plastic adjuster sections from deforming to ensure improved suspension movement.
  • Steering linkage with flange pipes features improved durability by attachment using hex head screws and lock nuts compared to attachment using 3x18 step screws.
  • Features full ball bearings.
  • Comes with a carrying case dedicated for the TT-02BR chassis.

Specifications:

  • 1/10 Scale Shaft driven 4WD Electric On-Road RC Vehicle Kit
  • Length: 388mm, width: 183mm, height: 258mm
  • Wheelbase: 258mm
  • Bathtub type frame
  • Front/rear oil gear differentials (with dedicated diff joints)
  • 3-piece steering tie-rod
  • 4-wheel independent double wishbone suspension
  • Oil dampers with aluminum cylinders
  • Gear ratio = 10.71:1 (with kit standard pinion)
